Space planning. Modeling. Visualization.
Plan your space with confidence.
3D Modeling, Rendering, Reality Capture & Design Intent Drawings.
Raydon Concepts turns existing spaces and new ideas into clear models, compelling visuals, and practical 2D drawings. We help architects, designers, property owners, and event teams explore options, coordinate details, and make informed decisions.
Explore the work
Selected work
A model makes an idea tangible. Visualization helps you understand how the whole space comes together.
In motion
We provide strategic assurance so you can make informed decisions about your space.
Our space planning, 3D modeling, and visualization make layouts and design options easier to understand. Based in La Quinta, we work with clients in Palm Springs, Palm Desert, Rancho Mirage, Indian Wells, and across the Coachella Valley and beyond.
Start with a clear understanding of the space. Capture existing conditions, test layouts, and refine how people move between rooms and outdoor areas before committing to a design.
Turn ideas and site data into organized, editable SketchUp models. Explore design options, coordinate details, and keep the model useful as the project evolves. Models can also be optimized for Revit, Vectorworks, 3ds Max, and Rhino.
See how the design comes together before it is built. Compare materials, lighting, and atmosphere through detailed still images and animation that help clients understand the proposal and make confident decisions.
Grounded in the real space

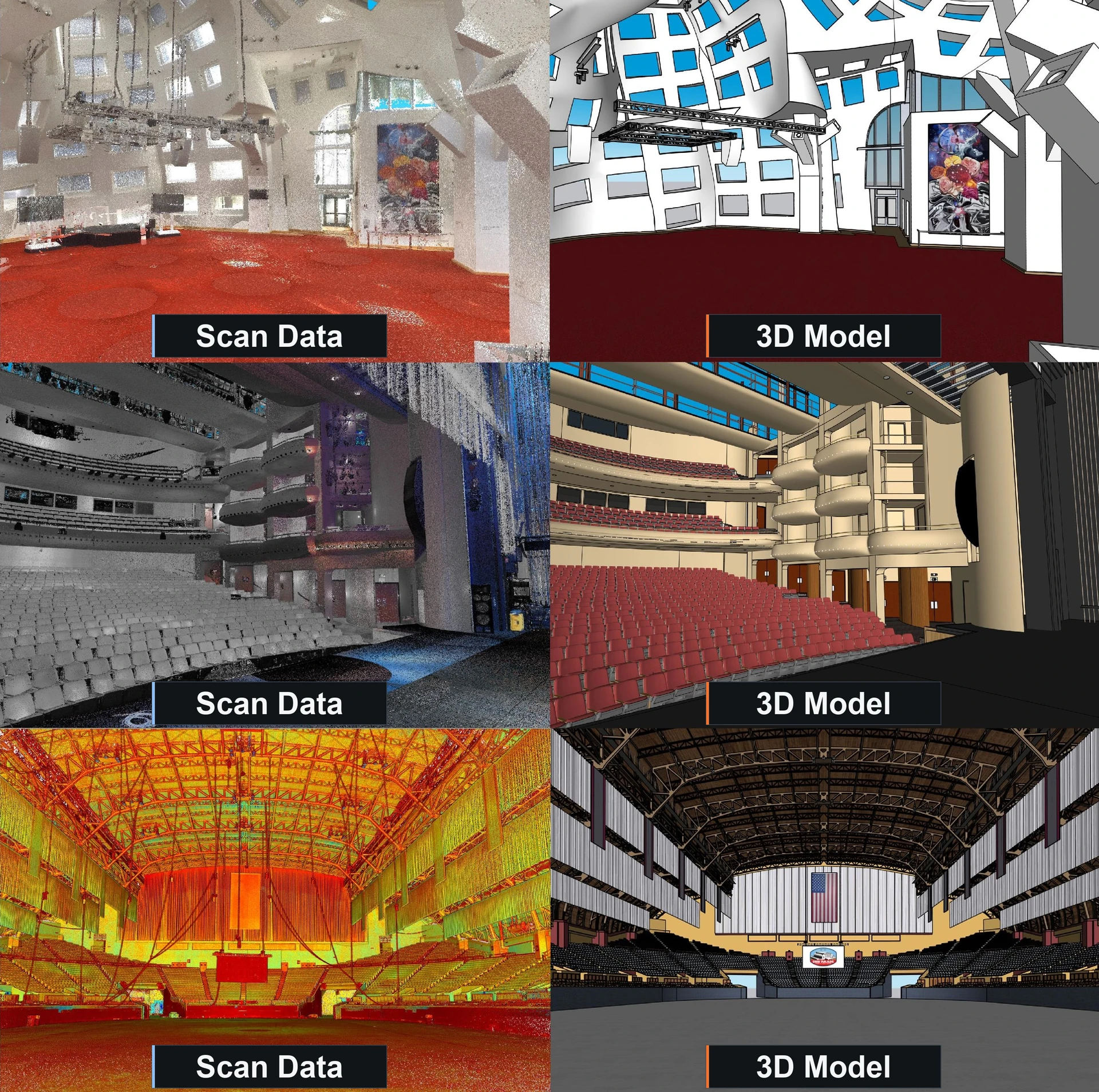

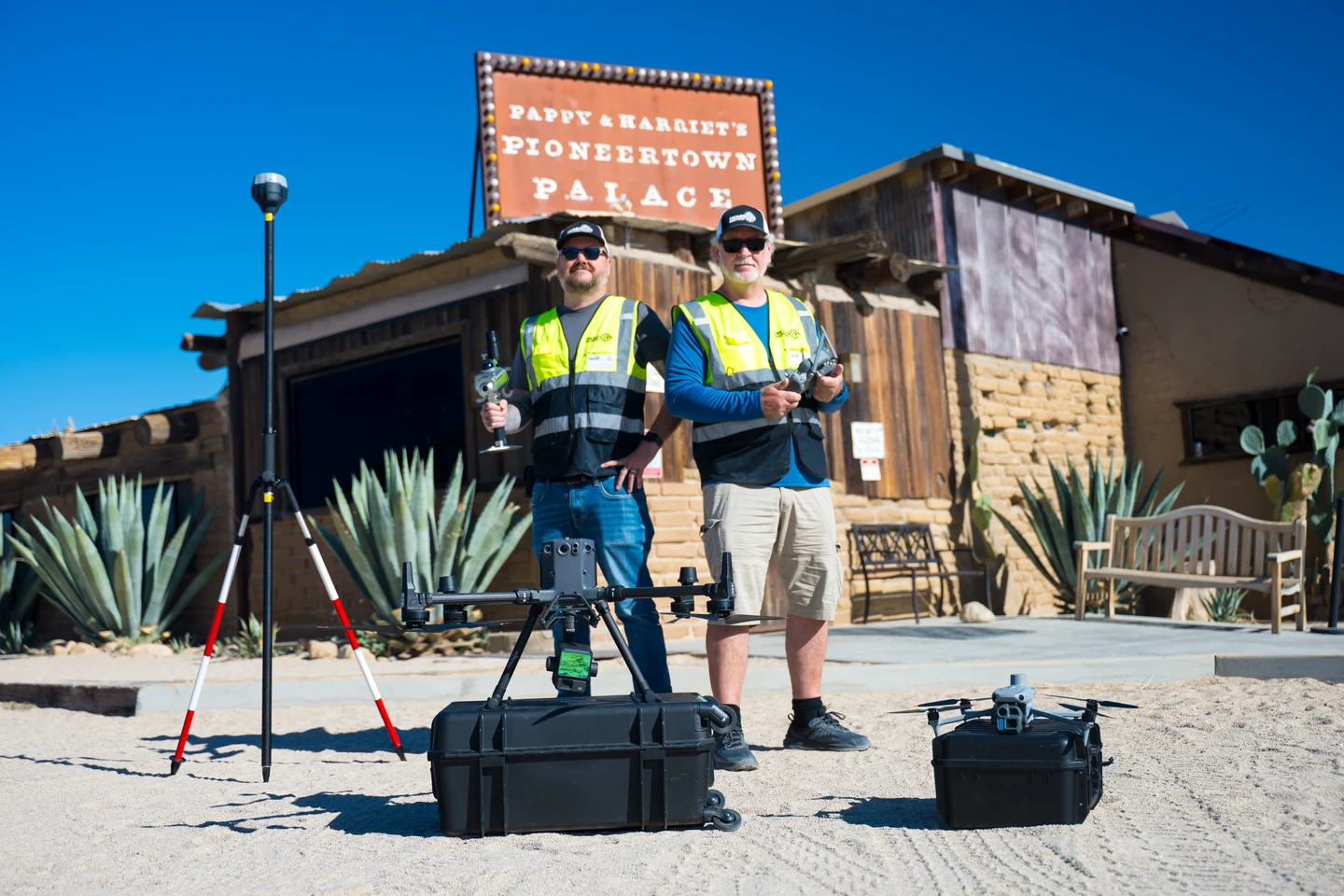

A useful model starts with a clear picture of what’s already there. Through Drone Scope Mapping, co-founded by Brandon Ray Henderson, we document existing spaces and turn scan data into models optimized for your workflow, including Revit, Vectorworks, 3ds Max, Rhino, and SketchUp.
Explore Drone Scope Mapping

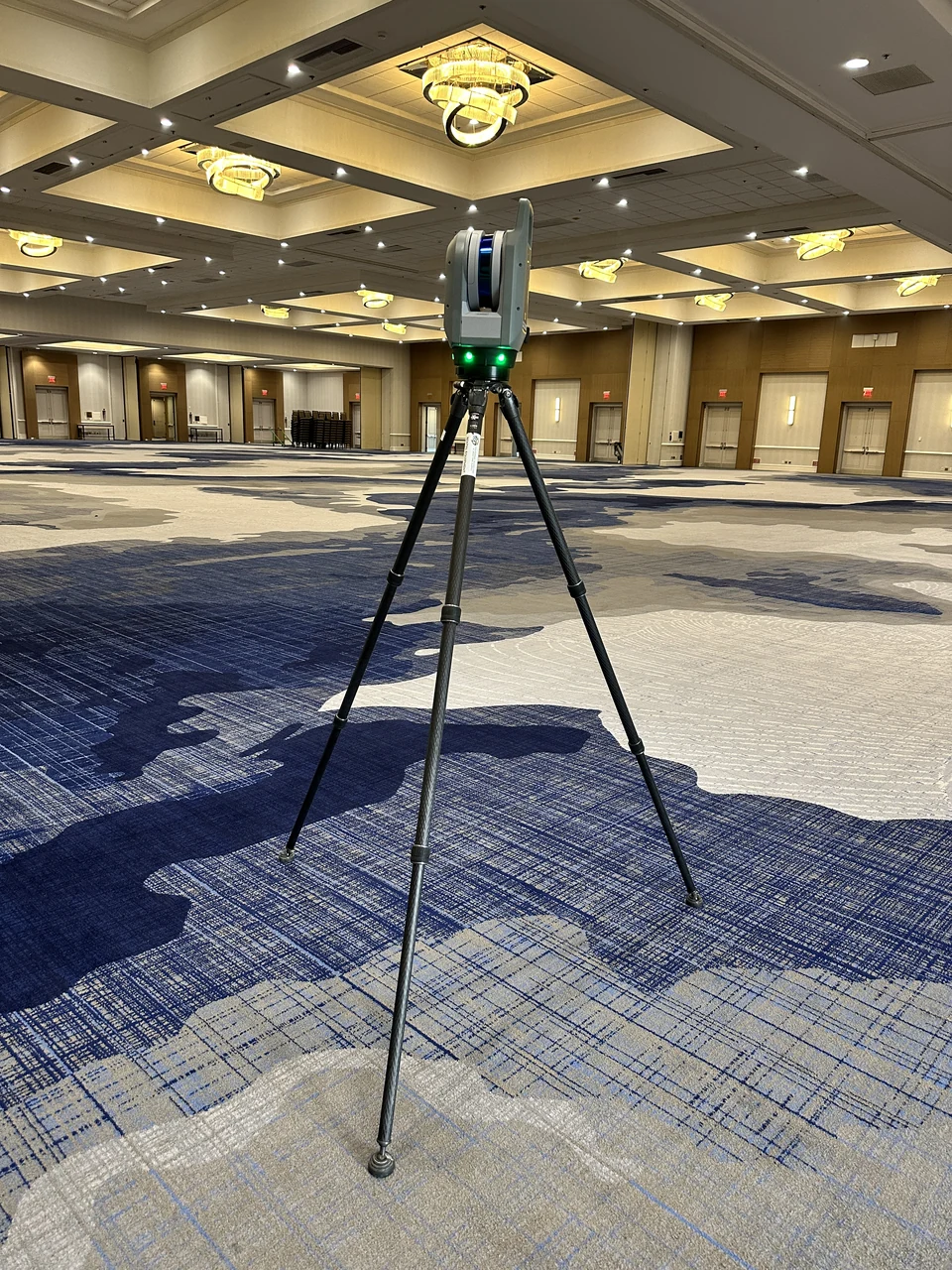

Precision in the field
150 mmaximum scan range
High-speed capture, automatic calibration, self-leveling, and in-field registration.
Interiors, facades, vertical circulation, and roof structures.
Up to 150 m in Standard mode; up to 120 m in High Speed mode.
Raydon Concepts Design Suite
Born from the work. Built for SketchUp.
Practitioner-designed SketchUp tools shaped by years of project experience. Built to address the recurring pain points we know firsthand.
The free utilities in this suite are my contribution to the SketchUp community, built to make everyday modeling a little easier.
The principles behind the suite.
Start with a few native drawing tools. Set dimensions, choose options, and let the tool build the geometry. Explore alternatives through simple, configurable controls.
Keep the recipe behind the shape. Revisit a design, recover the choices that shaped it, and make revisions without rebuilding from scratch.
Bring model views, dimensions, specifications, and quantities into clear design-intent documentation. Help clients understand the proposal and collaborators carry the work forward.
More from the SketchUp community.
Sharing the work
Brandon Ray Henderson is speaking at SketchUp’s 3D Basecamp Summit this November. If you’re attending, come say hello.
to
3D Basecamp Summit at Trimble Dimensions
S-1036
S-1357
Already registered? Open a session to add it to your schedule. Event registration is required for session scheduling. All times are Pacific Standard Time.
